3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications

  • 3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications
  • 3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications
  • 3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications
  • 3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications
  • 3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications
  • 3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications
Herkunftsort CHINA
Markenname HuaXin
Zertifizierung ISO14001/ ISO9001/IATF16949
Modellnummer HX1392FH101GG
Dokumentieren HX1392FH101GG-SPEC.pdf
Min Bestellmenge 500
Preis $68
Verpackung Informationen Blister+Schaumbox+Bubble Bag+im Karton+Master -Karton
Lieferzeit 6 Wochen ~ 8 Wochen
Zahlungsbedingungen T/t
Versorgungsmaterial-Fähigkeit 50k pro Monat
Produktdetails
Display -Technologie Amole-Anzeige Name OLED -Panel
Größe 3.92" Auflösung 1080*1240
Helligkeit 520 Schnittstelle MIPI
Fahren IC RM692C9
Hervorheben

3.92 Inch AMOLED Display Module

,

1080*1240 Resolution AMOLED Screen

,

MIPI Interface OLED Panel
Sie können die gewünschten Produkte ankreuzen und im Message Board mit uns kommunizieren.
Hinterlass eine Nachricht
Produkt-Beschreibung
3.92 Inch AMOLED Display Module 1080*1240 Dots MIPI Interface 520c/d Brightness
3.92 Inch AMOLED display module with 1080*1240 resolution, MIPI interface, and 520cd/m² brightness.
Product Parameters
Part Number HX1392FH101GG
Screen Type 3.92 inch AMOLED
Resolution 1080*1240
Viewing Angle All directions
Active Area (mm) 65.448 (W) * 75.144 (H)
Panel Size (mm) 67.248*79.874*0.699
Brightness (cd/m²) 520
Interface MIPI
Pin Quantity 44 pins
Driving IC RM692C9
Product Images

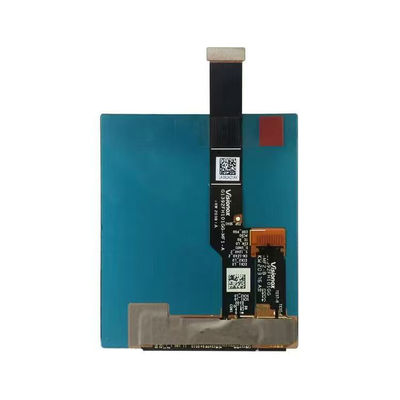

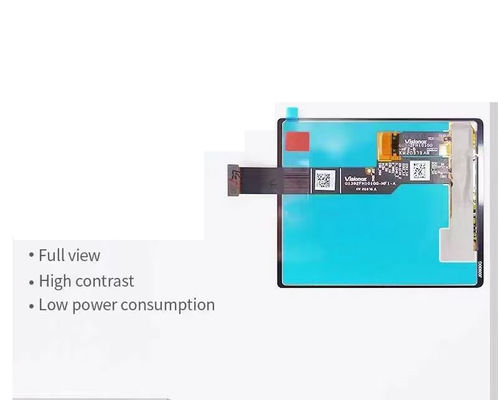

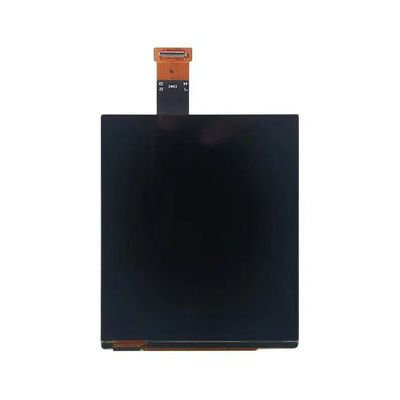

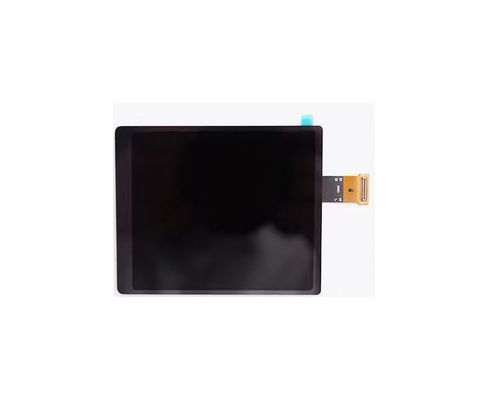

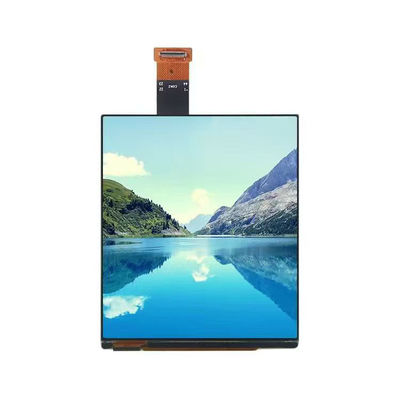

3.92 inch AMOLED display module front view 3.92 inch AMOLED display module side view 3.92 inch AMOLED display module close-up 3.92 inch AMOLED display module technical view
Drawing & Pin Definition
3.92 inch AMOLED display module pin definition diagram
OLED Product Knowledge
OLED Advantages:
  • Lighter and thinner than LCDs
  • High contrast ratio
  • High color saturation
  • Lower power consumption
OLED Disadvantages:
  • More expensive than LCD and TFT
  • Shorter lifetime than LCD and TFT
Company Information
Huaxin Advantages:
  • Factory located in cost-effective inland city
  • Advanced equipment for stable quality
  • Most processes use fully automatic equipment
  • Professional engineers with 20+ years experience
  • Custom product design capability
Certifications:
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Details:
  • Huaxin Technology (Enshi) Co., LTD
  • Located in Hubei, Enshi
  • Founded in 2009
  • High-tech enterprise specializing in LCD, LCM, TFT, backlight, OLED
  • LCD product range: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM product range: COB, TBA, COG, TP, LED backlight series
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Production Capacity
Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Safety box & instrument
  • Lock & smart home
  • Transmitter & watch
  • Watch & radio
  • Collimator & navigator
AMOLED Display Characteristics
  • Self-Emissive Pixels
  • High Contrast Ratio
  • Excellent Color Accuracy and Vibrancy
  • Wide Viewing Angles
  • Power Efficiency
  • Thinness and Flexibility
  • Fast Response Time
Power Efficiency Comparison
1. Power Consumption:
  • AMOLED displays consume power per-pixel (black/dark pixels use very little power)
  • LCD/LED displays require constant backlight power regardless of content
2. Content Dependency:
  • AMOLED more efficient for dark content (pixels can be turned off)
  • LCD/LED power consumption remains constant for all content
3. Brightness Control:
  • AMOLED can adjust pixel brightness individually for better efficiency
  • LCD/LED typically have fixed backlight brightness
4. Display Size:
  • AMOLED more power-efficient for smaller displays
  • Larger LCD/LED displays may require more power-hungry backlights
