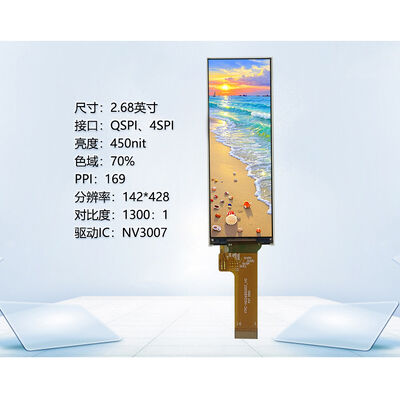

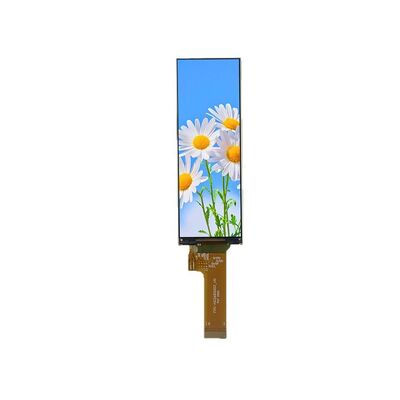

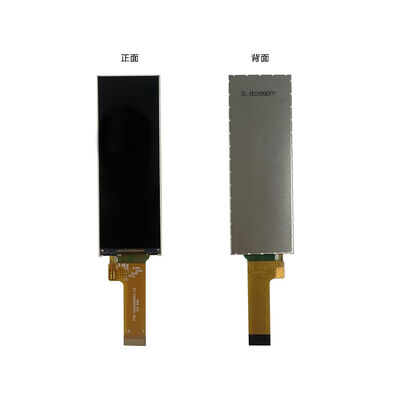

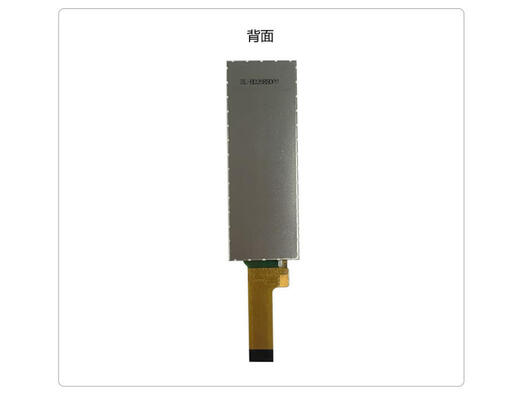

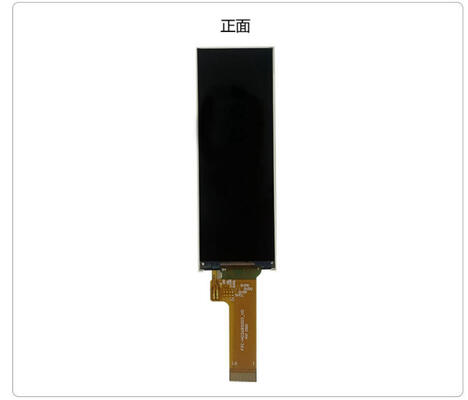

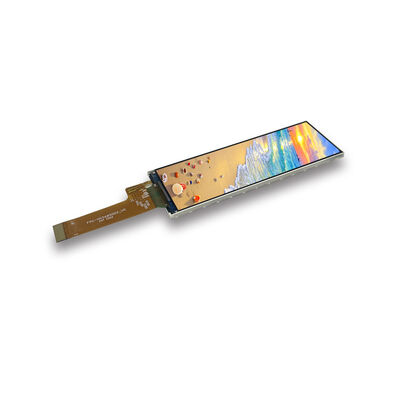

2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface

  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
Herkunftsort China
Markenname HuaXin
Zertifizierung ISO14001/ISO9001/IATF16949
Modellnummer HX0268S003T003
Dokumentieren HX0268S003T003-SPEC.pdf
Min Bestellmenge 1000
Preis Verhandlungsfähig
Verpackung Informationen Blister+Schaumbox+Bubble Bag+im Karton+Master -Karton
Lieferzeit 6 Wochen ~ 8 Wochen
Zahlungsbedingungen T/T
Versorgungsmaterial-Fähigkeit 100K pro Monat

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Display -Technologie Bar Typ LCD Name Bar vom Typ TFT
Größe 2,68 " Auflösung 142RGB x 428
Helligkeit 450 Blickwinkel freier Blickwinkel
Schnittstelle QSPI Fahren IC Nv3007
Touchpanel CTP
Sie können die gewünschten Produkte ankreuzen und im Message Board mit uns kommunizieren.
Hinterlass eine Nachricht
Produkt-Beschreibung
2.68 Inch Bar Type TFT LCD Display Module with  touch panel  142RGB x 428  Resolution and QSPI interface
Product Specifications
Part No. HX0268S003T003
Display Size 2.68 inch tft display
Outline Size (mm) 24.38(H) ×69.43(V)×2.09(T)
AA Size (mm) 21.28(H)×64.14(V)
Resolution 142RGB x 428
Interface QSPI
Brightness 450
View Angle all
Driving IC  NV3007
Touch screen CTP
Technical Drawing
2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface 0

TFT Technology Overview
TFT Substrate and CF Substrate Input Flow
2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface 1
TFT Structure
2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface 2
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
  • Founded: 2009
  • Location: Hubei, Enshi
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D team: 10% of workforce
  • QC team: 15% of workforce
Company Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Highly automated production processes
  • 20+ years experience in LCD field
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousands/Day
Backlight Production 100 200 300 500 500 Thousands/Day
OLED Production 10 20 30 40 50 Thousands/Day
Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternative technologies
  • Size Flexibility: Available in sizes from small handheld to large panels
  • Backlighting: Typically uses LED backlight systems
  • Versatility: Wide range of applications across industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Moderate contrast ratio
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving images
  • Limited flexibility in physical form
  • Restricted color gamut compared to some alternatives
