2.53 inch square six colors E-paper display 428X428 dots MCU interface

  • 2.53 inch square six colors E-paper display 428X428 dots MCU interface
  • 2.53 inch square six colors E-paper display 428X428 dots MCU interface
  • 2.53 inch square six colors E-paper display 428X428 dots MCU interface
  • 2.53 inch square six colors E-paper display 428X428 dots MCU interface
  • 2.53 inch square six colors E-paper display 428X428 dots MCU interface
  • 2.53 inch square six colors E-paper display 428X428 dots MCU interface
Herkunftsort China
Markenname HuaXin
Zertifizierung ISO14001/ISO9001/IATF16949
Modellnummer ESHX0253Z02-CNG
Dokumentieren ESHX0253Z02-CNG-SPEC.pdf
Min Bestellmenge 1000
Preis US$9.8
Verpackung Informationen Blister+Schaumbox+Bubble Bag+im Karton+Master -Karton
Lieferzeit 6 Wochen ~ 8 Wochen
Zahlungsbedingungen T/T
Versorgungsmaterial-Fähigkeit 100K pro Monat
Produktdetails
Display-Technologie E-Tinte Epaper-Anzeige Name 2,53" E-PAPIER
Größe 2,53" Auflösung 428X428
Anzeigefarbe Rot, Weiß, Schwarz, Gelb, Blau, Grün Blickwinkel Alles Uhr
Schnittstelle MCU
Hinterlass eine Nachricht
Produkt-Beschreibung
ESHX0253Z02-CNG is an Active Matrix Electrophoretic Display (AMEPD), with interface and a
reference system design. The 2.53'' active area contains 428 ×428 pixels, and has 2-bit or 3-bit E6 full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel


A:Product Parameters

Part NO. ESHX0253Z02-CNG
Display Technology E-paper display module
Diagonal Screen Size 2.53 inch six colors E-paper
Active Area (mm) 45.475(H) × 45.475(V)
Panel size(mm) 50.88(H) × 55.37(V) ×0.86(D)
Brightness(cd/m2) 100
Resolution 428X428
Interface mcu
View angle all

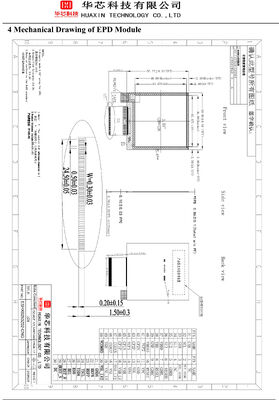

B:Technical Drawing

2.53 inch square six colors E-paper display 428X428 dots MCU interface 0

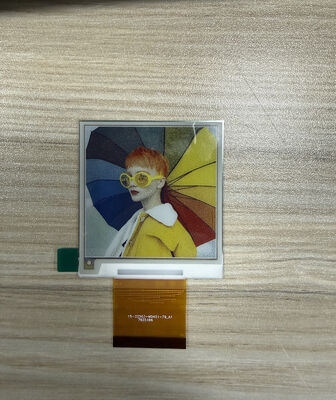

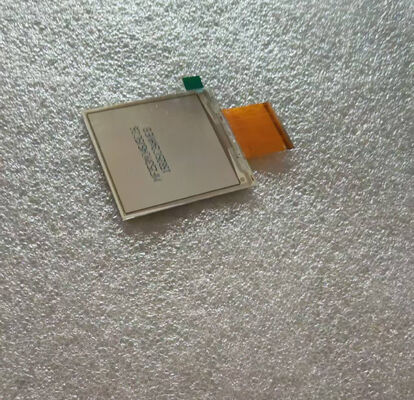

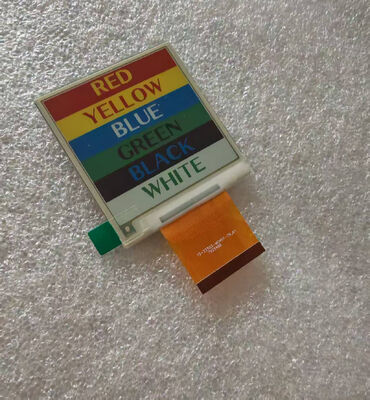

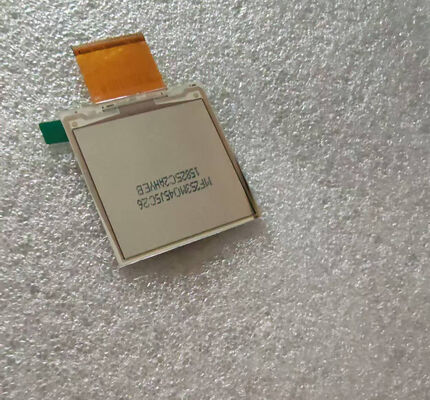

C: Product Picture

2.53 inch square six colors E-paper display 428X428 dots MCU interface 1

2.53 inch square six colors E-paper display 428X428 dots MCU interface 2

2.53 inch square six colors E-paper display 428X428 dots MCU interface 3




D: E-paper Product Knowledge


  • E- paper  Advantages:
  • paper-like reading experience
  • ultra wide view angle
  • ultra low power consumption
  • ultra thin
  • eye protection
  • environmental protection
  • without backlight


E-paper  Disadvantages

  • suitable to lower temperature
  • size is limited in the market
  • color is limited and can't make full color


E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module


  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%


F: Production Capacity


Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day



G: Product Application


1.supermarket retail lable

2.e-book reading

3.financial field

4. smart healthcare

5. smart transportation and smart home


H: E-paper display Characteristics


1. Reflective Display

2. Bi-stable

3. Low Power Consumption

4. High Contrast and Readability

5. Flexible and Lightweight

6. Limited Color Capabilities

7. Slow Refresh Rate


I:Are there any drawbacks to using e-paper displays


1.Limited Color Capabilities

2.Slow Refresh Rate:

3.Limited Viewing Angles:

4.Limited Brightness and Contrast

5.Slower Image Updates

6.Limited Availability of Larger Sizes

7.Susceptibility to Environmental Factors
