2.0 Inch TFT LCD Module with 480(RGB)x360 Resolution and MIPI/RGB 18bit Interface
| Herkunftsort | China |
|---|---|
| Markenname | HuaXin |
| Zertifizierung | ISO14001/ISO9001/IATF16949 |
| Modellnummer | HX20WV002B |
| Min Bestellmenge | 1000 |
| Preis | Verhandlungsfähig |
| Verpackung Informationen | Blister+Schaumbox+Bubble Bag+im Karton+Master -Karton |
| Lieferzeit | 6 Wochen ~ 8 Wochen |
| Zahlungsbedingungen | T/T |
| Versorgungsmaterial-Fähigkeit | 100K pro Monat |
Produktdetails
| Display-Technologie | Schirm IPS TFT LCD | Name | TFT-Modul |
|---|---|---|---|
| Größe | 2,0" | Auflösung | 480 ((RGB) * 360 |
| Fahren IC | ST7701s | Blickwinkel | ALLE 0' Uhr |
| Schnittstelle | MIPI/RGB 18BIT | ||
| Hervorheben | 2.0 TFT LCD module MIPI interface,480x360 resolution TFT color display,ST7701S driving IC TFT module |
||
Produkt-Beschreibung
2.0" TFT LCD Module,480(RGB)X360 Resolution, MIPI/RGB 18bit Interface, Driving IC ST7701S,ALL o'clock ,500cd,4LEDS
Product Specifications
| Part NO. | HX20WV002B |
| Display Technology | IPS TFT LCD |
| Diagonal Screen Size | 2.0inch |
| Active Area (mm) | 40.824(W)X30.618(H) |
| Panel size(mm) | 46.00(W)X40.80(H)X3.70(T) |
| Brightness(cd/m2) | 500 |
| Resolution | 480(RGB)*360 |
| Interface | MIPI/RGB 18bit |
| View angle | ALL o'clock |
| Driving IC | ST7701S |

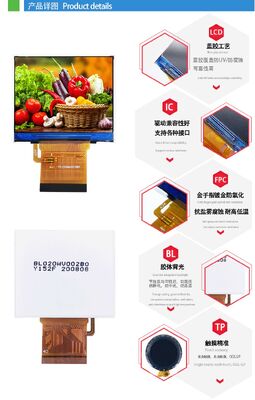

Product Picture

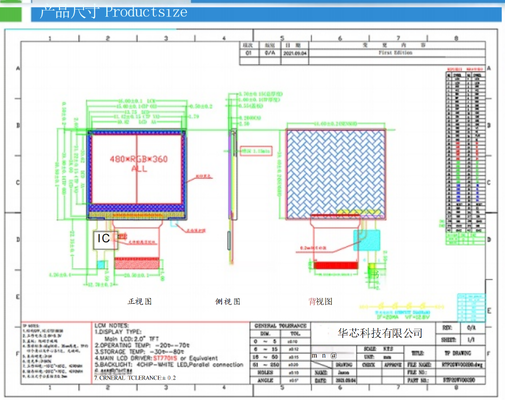

Technical Drawing
TFT Technology Overview
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
- Cost-effective factory base in inland city
- Advanced equipment for stable quality
- Automated processes for efficiency and consistency
- Expert engineering team with 20+ years experience
- Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
- LCD: VA, TN, HTN, STN, FSTN, CSTN series
- LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
- Registered capital: 20 million
- Current staff: 500+ employees
- R&D accounts for 10% of workforce
- QC accounts for 15% of workforce
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands of logarithms/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand pieces/Day |
Product Applications
- Car navigation systems & printers
- Video call systems & advertising displays
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control systems & home appliances
TFT Display Advantages
- Excellent image quality with high resolution, sharpness, and color accuracy
- Fast response times for quick pixel switching
- Wide viewing angles with minimal color shifts
- Energy-efficient operation
- Available in various sizes from small handheld to large panel displays
- LED backlighting for screen illumination
- Wide range of applications across multiple industries
TFT Display Limitations
- Limited viewing angles compared to some technologies
- Limited contrast ratio
- Backlighting requirements and power consumption
- Response time limitations and potential motion blur
- Limited flexibility in display form factors
- Limited color gamut range
